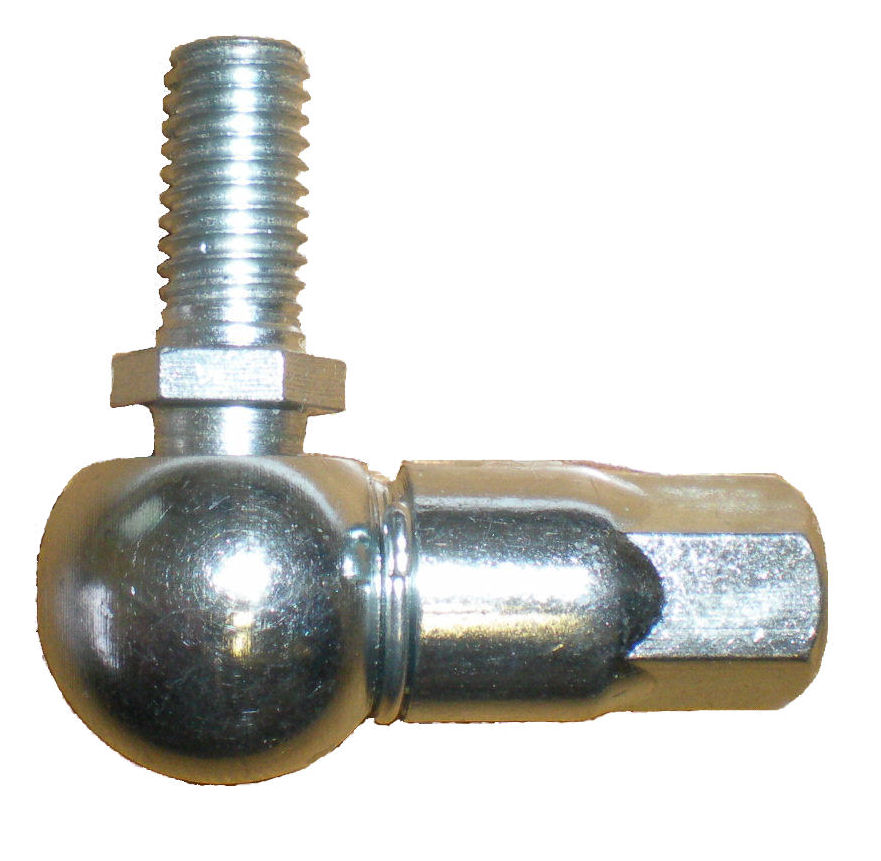

HCCBJ Metric Series Ball Joint

Material: Body Low carbon steel.. Ball stud Medium carbon steel, ball is induction hardened. Inner retaining ring and safety clip Hard drawn spring steel.

Protective Finish: Zinc plated and passivated. Ball Stud, inner retaining ring and safety clip are de-embrittled. The assembly is lubricated.

Based upon Din Standard 71802

The ball stud is retained by a captive internal wire ring with additional stud retention security provided by the external wire safety clip.

For improved wear resistance, the ball is induction hardened and there is an optional gaiter available to help resist dirt ingress.

If a fitted gaiter is required then the suffix “G should be added to the part number. E.g CBJG10.

HCCBJ Ball Joints are also available without stud for later assembly on to a pre-positioned stud.

Compatible with Threaded Ball Studs and Rivetting Ball Studs.

Stainless Steel Ball Joints are also available, please contact us for details.
